Media Converters

DESCRIPTION

100BASE-T1 MediaConverter_NXP from Technica Engineering establishes one direct point-to-point conversion between automotive ECU’s using 100BASE-T1 and any standard Fast Ethernet device with RJ-45 connector

No packets are stored or modifi ed. It uses the NXP TJA1100_MRA4 Phy.

100BASE-T1 MediaConverter_NXP is the ideal physical layer conversion between Automotive Ethernet and your PC system.

media converter

FEATURES

  • Convert 100BASE-T1 100 MBit/s full-duplex 1 x unshielded twisted pair - UTP to Fast Ethernet 100BASE-TX.
  • Master / Slave confi guration
  • HalfOut / FullOut confi guration
  • Power requirement: 8 to 16 Volt DC, Power consumption: 2 Watt
  • Massive stainless steel housing
  • Status LEDs
  • Configuration DIP switches
  • Automotive MQS connector included (Power, 100BASE-T1)
  • Standard Ethernet RJ45 connector
  • Size: 92 x 63 x 28 mm

DESCRIPTION

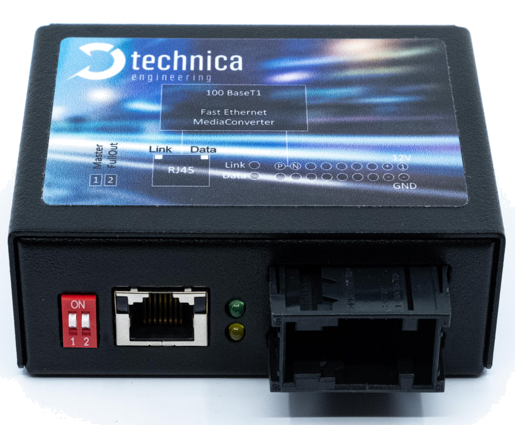

100BASE-T1 MediaConverter_BCM establishes one direct point-to-point conversion between automotive ECU’s using 100BASE-T1 & any standard Fast Ethernet device with RJ-45 connector.

No packets are stored or modified. First on the market and highest proven reliability. It uses the Broadcom BCM89810 Phy.

100BASE-T1 MediaConverter_BCM is the ideal physical layer conversion between Automotive Ethernet and your PC system.

media converter

FEATURES

  • Converts IEEE 100BASE-T1 100 MBit/s full-duplex (1 x unshielded twisted pair - UTP) to Fast Ethernet 100BASE-TX
  • Broadcom 100BASE-T1 Technology (a.k.a. BroadR-Reach™)
  • Master / Slave configuration
  • HalfOut / FullOut configuration
  • Power requirement: 8 to 16 Volt DC, Power consumption: 2 Watt
  • Massive stainless steel housing
  • Status LEDs
  • Configuration DIP switches
  • Automotive MQS connector included (Power, 100BASE-T1)
  • Standard Ethernet RJ45 connector
  • Size: 92 x 63 x 28 mm

DESCRIPTION

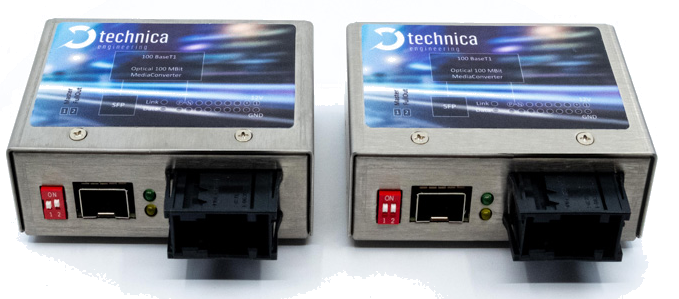

100BASE-T1 MediaConverter_EMC set from Technica Engineering is the fi rst commercial tool for EMC validation of 100BASE-T1 ECU’s. It works in a pair-set, converting 100BASE-T1 (a.k.a BroadR-Reach (TM from Broadcom)) to optical fi bre and back to 100BASE-T1 and is specially designed to emit below the industry standard requirements.

No packages are stored or modifi ed in the device. The process is a pure physical layer conversion.

100BASE-T1 MediaConverter_EMC set is the ideal solution for working quickly and effi ciently with the new 100BASE-T1 technology.

media converter

FEATURES

  • Converts 100BASE-T1 (a.k.a Broadcom BroadR-Reach™) 100 MBit/s full duplex 1 x unshielded twisted pair - UTP to optical fi ber and back to 100BASE-T1
  • Master/slave confi guration
  • HalfOut/FullOut confi guration
  • Power requirement: 10 to 13 Vold
  • DC (nominal 12 Volt DC), power consumption: 3 Watt
  • Stainless steel housing
  • Status LEDs
  • Configuration DIP switches
  • Optical Fibre via SFP modules (modules and fi bre included in the set)
  • Size: 92 x 63 x 30 mm

DESCRIPTION

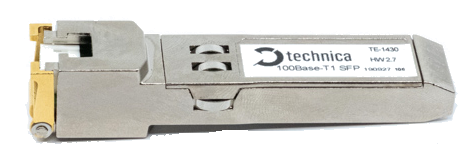

The 100BASE-T1 SFP Module is the optimum solution to convert between 100BASE-T1 and SGMII. It fits into a standard Small Form-factor Pluggable (SFP) and generates 100 Mbit/s full-duplex 100BASE-T1.

It confi gures itself to Automotive 100BASE-T1 after power up. Master/slave mode of operation can be set with the DIP switch

Registers of the integrated Transceiver are accessible via I2C interface for diagnosis and reconfiguration.

It works seemlesly with our MediaGateway, which has one SFP slot. In any other case, please contact us for more info.

media converter

FEATURES

  • 100BASE-T1 and SGMII converter
  • Fits into a standard SFP Slot
  • Power requirements: 3.3 Volt DC
  • Power requirement: 10 to 13 Vold
  • Supports I2C for internal register access
  • DIP switch for Master/ Slave configuration
  • Size: 68 x 14 x 14 mm

DESCRIPTION

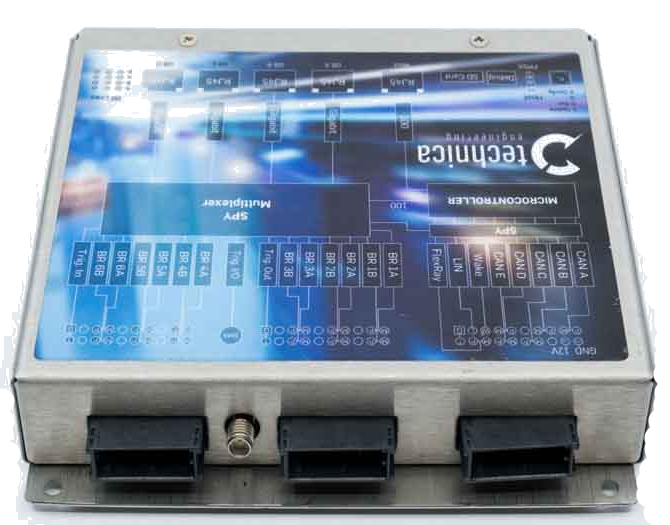

The 100BASE-T1 SPY 12 port is a highly specialized test & evaluation tool for seamless capture of multiple in-vehicle-network technologies. It provides common timestamping of all incoming messages and delivers the traffi c via Standard Gigabit Ethernet. Its 12 x 100BASE-T1 ports enable the capture of AVB/TSN traffi c, since the latency is symmetrical and deterministic.

All data can be recorded on a PC or datalogger for detailed online analysis. Several devices can be synchronized with each other via 802.1AS via the RJ45 Ports C and D, if more interfaces are needed.

Optionally other Use Cases as Frame Generator, Fault Injection, Data Manipulation, Trigger Generator can be upgraded.

The 100BASE-T1 SPY 12 port allows you to capture the traffi c of your 100BASE-T1, CAN/CAN-FD, LIN and FlexRay buses simultaneously using only one device.

media converter

FEATURES

  • 12x 100BASE-T1 Ports
  • 4x Gigabit Ethernet Ports
  • 1x Fast Ethernet Port for status output, confi guration and webserver
  • 5x CAN / CAN-FD Ports
  • 1x LIN
  • 1x SMA Trigger
  • 1x FlexRay Channel A
  • 1x SD Card for confi guration and storage of trigger events
  • Power Requirement: 12 Volt DC Nominal (7-16 Volt), 10 Watt
  • Stainless steel case
  • Size: 147 x 124 x 26mm
  • AVB/TSN Capture Capable

DESCRIPTION

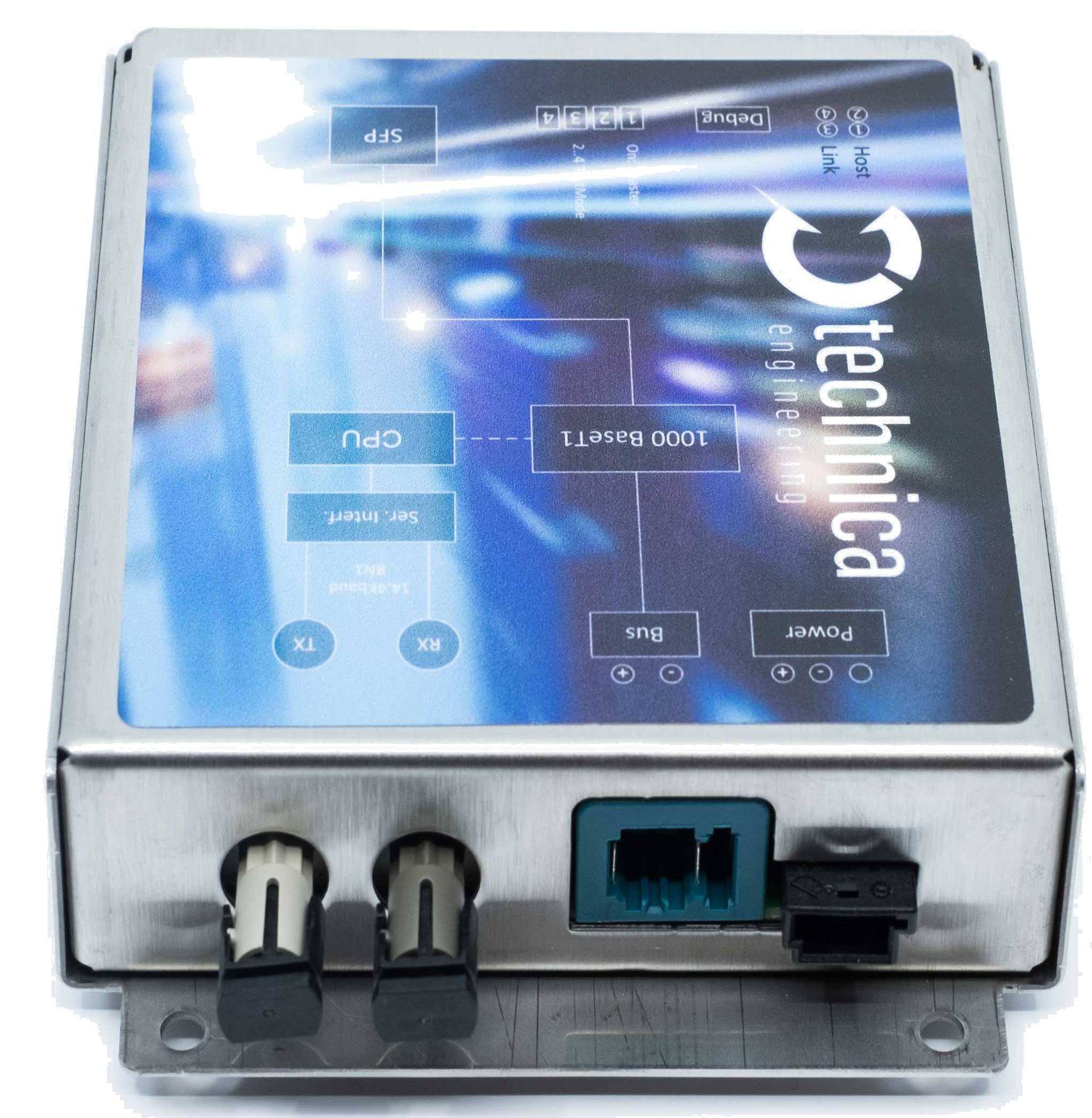

The 1000BASE-T1 Converter EMC from Technica Engineering is a smart tool used in automotive product development to test electronic control units (ECUs) under EMC conditions. It creates the link between an on-board vehicle network based on 1000BASE-T1 (Automotive Gigabit Ethernet) and the Ethernet-based computer belonging to the testing and development set-up.

The device provides an SFP Port to connect a standard Ethernet RJ45 module or to use an optical Gigabit Ethernet SFP Module. No packages are stored or modifi ed within the device. The process is a direct physical layer conversion, where the hardware was especially developed and optimized to provide the best possible EMC behavior.

Thus, the 1000BASE-T1 Converter EMC is the ideal solution for working quickly and effi ciently with the new 1000BASE-T1 technology, and it is the ideal device to perform EMC test through the optical interface.

media converter

FEATURES

  • Converts IEEE 1000BASE-T1 (1000 MBit/s full duplex) 1x unshielded twisted pair (UTP) to Gigabit Ethernet (1000BASE-T or optical Ethernet)
  • Master/slave confi guration
  • SFP Module allows optical Ethernet connection or standard Gigabit Ethernet through RJ45 Connector
  • Allows to perform EMC test through the optical interface
  • Stainless steel housing
  • Status LEDs
  • Configuration DIP switches
  • Automotive MateNET connector and cables included (Power, 1000BASE-T1)
  • Size: 95 x 95 x 32mm
